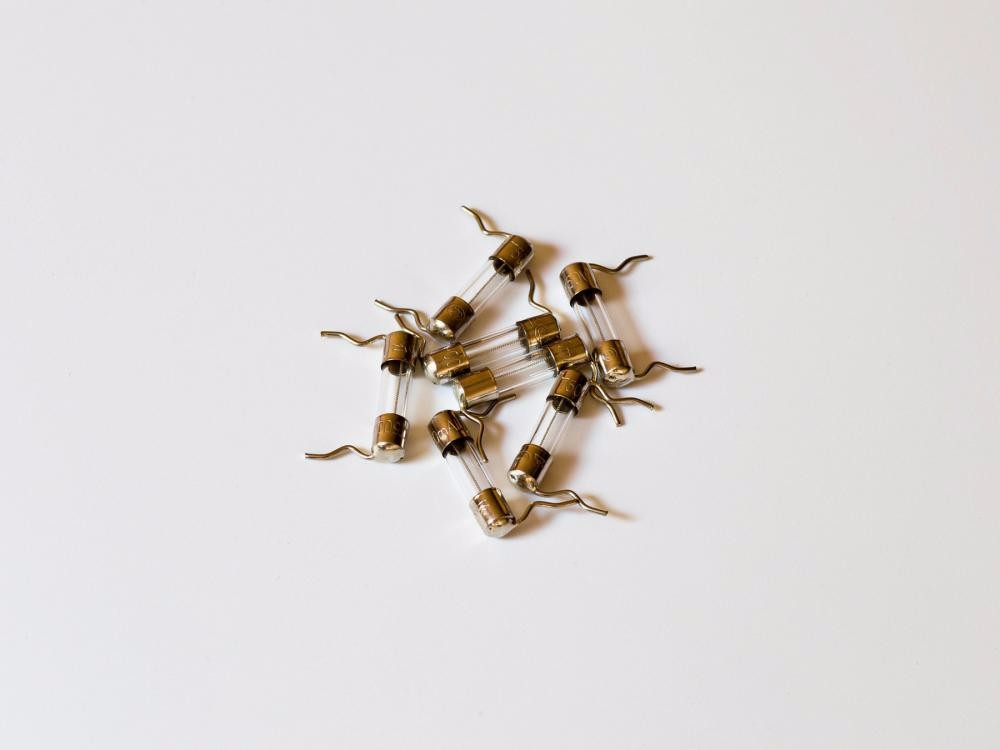

Glass Tube Fuse Axial Lead Time-lag 5 X 20 mm
Brand : Songshan
Product origin : Shanghai
Delivery time : 7-15 days
Supply capacity : 15000000
Glass Tube Fuse Axial Lead Time-lag 5 X 20 mm
Payment Type: | T/T,Paypal,Western Union |
Incoterm: | FOB,CFR,CIF |
Min. Order: | 1000 Piece/Pieces |
Basic Info
Model No.: RT2-20
Breaking Capacity: Low
Type: Current Fuse
Usaga: Low Voltage
Shape: Insert
Fusing Speed: T
Fusing Device: Pop-up Solid
Additional Info
Packaging: Carton
Brand: Songshan
Transportation: Ocean,Land,Air
Place of Origin: Shanghai, China
Product Description
The product, with rated interrupting ability 35A or 10In, is a slow blow axial lead fuse. The main materials of the fuse have copper, ceramic tube and alloy wire, which indicates the conventional glass tube of fuses, was replaced with ceramic tube to meet different requirements of different customers. The fuse is in accordance with IEC standards, and the fuse is indeed a high quality product with good stability. The fuse has been sold domestically and internationally and got more and more compliments. The requirements of the customers are the purposes of our continuous efforts.
Application: White goods, Power supply,Industrial control, etc.
Packaging Unit: 100 pcs.
Dimension:Unit in mm
Electrical characteristics
Model | Rated current (A) | Rated voltage (V) | MaxVoltage drop (mV) | Max persistence Power consumption (W) |
RT2-20 | 500mA | 250 | 900 | 1.6 |
RT2-20 | 630mA | 250 | 300 | 1.6 |
RT2-20 | 750mA | 250 | 250 | 1.6 |
RT2-20 | 800mA | 250 | 150 | 1.6 |
RT2-20 | 1A | 250 | 150 | 1.6 |
RT2-20 | 1.25A | 250 | 150 | 1.6 |
RT2-20 | 1.6A | 250 | 150 | 1.6 |
RT2-20 | 2A | 250 | 150 | 1.6 |
RT2-20 | 2.5A | 250 | 120 | 1.6 |
RT2-20 | 3.15A | 250 | 100 | 1.6 |
RT2-20 | 4A | 250 | 100 | 1.6 |
RT2-20 | 5A | 250 | 100 | 1.6 |
RT2-20 | 6.3A | 250 | 100 | 1.6 |
RT2-20 | 8A | 250 | 100 | 4 |
RT2-20 | 10A | 125/250 | 100 | 4 |
RT2-20 | 12.5A | 125/250 | 80 | 6 |
RT2-20 | 16A | 125/250 | 80 | 6 |
Current characteristics
Rated | Blowing time | ||
More than 100mA-10A | More than 10A-16A | ||
2.1In | Max | 2min | 5min |
2.75In | Min | 600ms | 600ms |
Max | 10s | 15s | |
4 In | Min | 150ms | 150ms |
Max | 3s | 5s | |
10 In | Min | 20ms | 20ms |
Max | 300ms | 400ms | |
Rated breaking capacity
35A or 10In whichever is greater
Current-time curve
